    RGSK

    (0 Reviews)

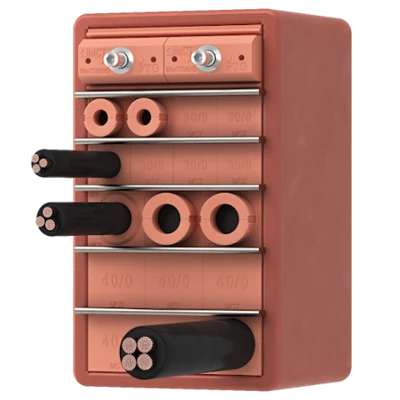

    The RGSK is an extended version of the standard RGS transit, designed with increased depth to ensure effective sealing in environments where water pooling may occur. Crafted for marine and offshore use, this weld-in frame features machined grooves for compression components and handles demanding conditions like decks or bulkheads affected by drainage or liquid accumulation

    Enquire Now

      • ✅ Extended Frame Depth (120 mm): Double the standard depth to prevent water pooling from compromising seal integrity
      • ✅ Machined Grooves: Precise CNC machining for stayplates and compression units enhances assembly accuracy
      • ✅ Multi-Size Options: Available in standard eight sizes (1–8) with internal widths of 60.5 ± 1 mm (odd sizes) and 120.5 ± 1 mm (even sizes)
      • ✅ Heavy-Duty Materials: Frame end plates are 10 mm thick; sides are 12 mm thick for robust structural performance
      • ✅ Comprehensive Protection: Provides fire‑resistance (A0, A60, H0, H60, H120), gas/water tightness (4/6 bar), and IP65–IP68/NEMA water/dust protection.
      ✅ Ex & EMC Capable: Available in explosion-proof Ex-rated (RGSK Ex) and EMI-shielded (E‑RGSK) versions
    Feature Specification
    Frame Depth 120 mm (4.72″)
    Internal Width 60.5 ± 1 mm (Sizes 1, 3, 5, 7); 120.5 ± 1 mm (Sizes 2, 4, 6, 8)
    Thickness Ends: 10 mm; Sides: 12 mm
    Machining Grooves for stayplates and compression elements
    Mounting Welded into structure
    Fire Resistance A0, A60, H0, H60, H120 standards
    Water/Gas Tightness Water: 6 bar; Gas: 4 bar (catastrophic conditions)
    Ingress Protection IP65–IP68; NEMA 3R, 4X, 12
    Variants Standard, RGSK Ex (ATEX/IECEx), E RGSK (EMI-shielded)
        • Use Case Description
          Offshore Platforms Ideal for decks, helidecks, or walkways exposed to rain or wash-down water
          Marine & Subsea Installations Keeps seals protected in pooling-prone structural zones
          Heavy-Industry Bulkheads Designed for environments with potential leakage or liquid accumulation
          Hazardous-Zone Areas RGSK Ex meets ATEX/IECEx requirements for safe operation in explosive atmospheres
          EMI-Sensitive Vessels E RGSK provides robust protection against EMP, EMI, and static discharge (e.g., lightning)

    Availability: In Stock
