    RGSFBO

    (0 Reviews)

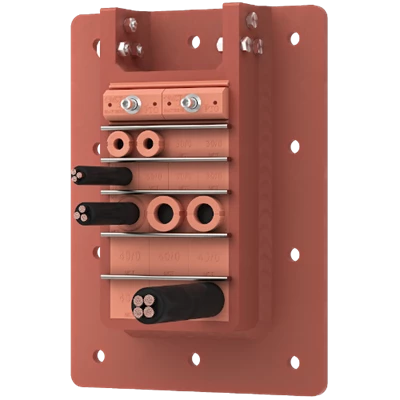

    The RGSFBO is a bolted, openable variant of the RGS transit designed for retrofit scenarios where cables are already installed. Ideal for marine, offshore, submarine, and hazardous industrial environments, this system offers secure fire, water, gas, and EMI sealing without welding, minimizing workspace disruption and preserving structural integrity.

    • ✅ Openable Frame Design: One-side removable frame enables installation around existing cables—no need to re-route or disrupt live systems
    • ✅ Bolted Installation Kit: Supplied with flange, pre-drilled bolt holes, stainless steel bolts, nuts, washers, and gasket/sealing compound for secure fitment
    • ✅ Welding-Free Mounting: Engineered for settings where welding is prohibited or stresses from hot work are unacceptable
    • ✅ Broad Type Approvals: Suitable for standard, EMC (E‑RGSFBO for EMI shielding), and Ex-rated (RGSFBO Ex) applications in classified hazardous zones
    • ✅ High Sealing Performance: Water-tight up to 6 bar and gas-tight up to 4 bar under catastrophic pressure scenarios
    • ✅ Fire & Environmental Ratings: Certified A0, A60, H0, H60, H120 and ingress protection IP65–IP68, NEMA 3R/4X/12
    Parameter Specification
    Frame Size Range Sizes 2, 4, 6, 8 available (Internal widths: 60.5 ± 1 mm odd, 120.5 ± 1 mm even)
    Frame Thickness 10 mm (Steel); Flange dimension: 60 × 10 mm
    Mounting Method Bolted via pre-drilled flange components; no welding required
    Sealing Capacity Water-tight to 6 bar; Gas-tight to 4 bar (Catastrophic pressure)
    Fire Resistance Certified A0, A60, H0, H60, H120
    Ingress Protection IP65–IP68; NEMA 3R, 4X, 12
    Variants Standard, E RGSFBO (EMC), RGSFBO Ex (ATEX/IECEx)
        • Industry / Use Case Description
          Offshore Oil & Gas Retrofit cable access in live environments without halting operations
          Marine & Naval Vessels Maintain cable integrity during bulkhead or deck modifications
          Submarine & Drilling Platforms Safe bolted transits for existing systems under pressure
          Explosion-Risk Facilities Ex-rated variant for classified zones
          EMC-Sensitive Installations EMC version protects against EMP, EMI, and static discharge

    Availability: In Stock
